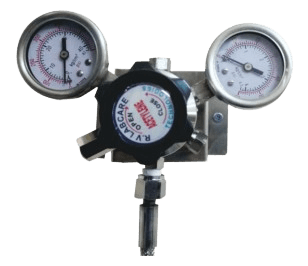

SS/DS Series - Single Cylinder Wall Mounting Regulator
| Maximum Inlet Pressure | 280 Bar/4000 Psig |
| Maximum Outlet Pressure | 16 Bar/230 Psi |
| Flow coefficient | 0.06 |
| Operating Temperature | -40° C to 60°C |
| Gauge Diameter | 2" Dial |
| Cylinder Pressure Gauges | 280 Bar/4000 Psig |
| Outlet Line Pressure Gauges | 16 Bar/230 Psi |
| Operating Valve | 3000 Psig |
| Body | SS 304 |
| Bonnet | SS 304 |
| Diaphragm | 304 Stainless Steel |
| Valve nozzle | SS 304 |
| Valve Seat | TEFZEL/PCTFE |
| Adjusting Knob | ABS plastic |
| High Pressure Pigtails | 1.20 mater |
| Available Cylinder Configuration | 1 |
