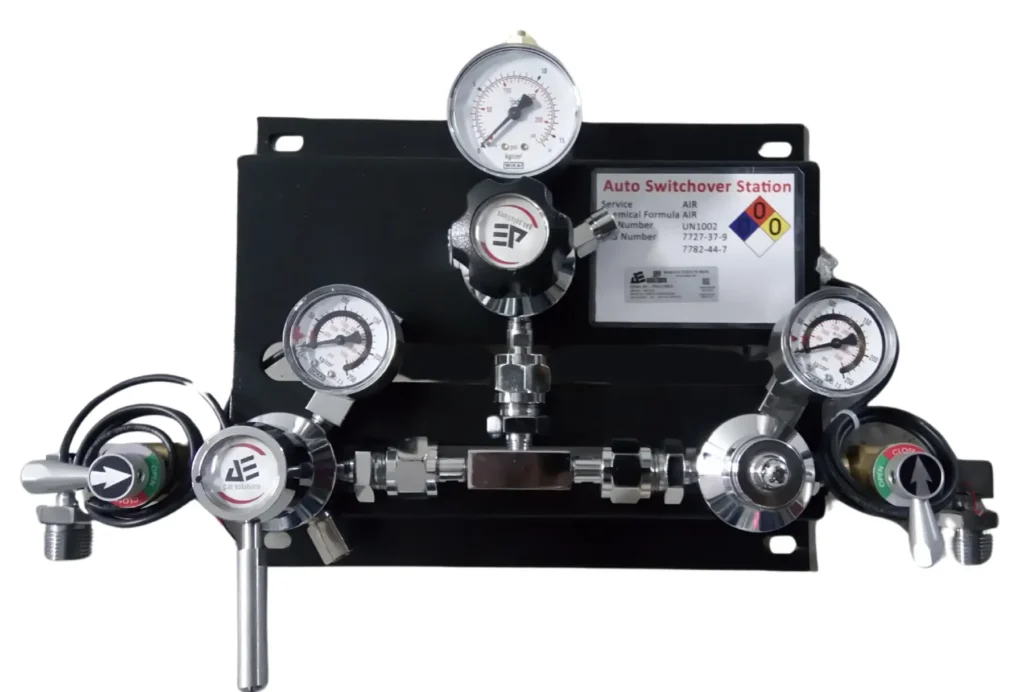

Pressure Differential Automatic Changeover System Brass & SS
| Specifications - Standard Version | |
| Maximum Inlet Pressure | 230bar/3350psig |
| Flow Coefficient | 0.06 |
| Operating Temperature | -40°C to 60°C |
| Gauge Diameter | 2" (Switch Contact) |
| Body | Brass/316 Stainless Steel |
| Bonnet | Brass/316 Stainless Steel |
| Diaphragm | 316L Stainless Steel |
| Valve Nozzle | Brass/316 Stainless Steel |
| Filter | 10 Micron-Sintered |
- Wall Mountable Steel (Powder Coated) Back Plate
- High Pressure Flexible Tail pipe Connector at inlet
- High pressure 1/4 Turn Diaphragm Operated Shut-off Valve
- High pressure Brass Blocks / Tees / Elbows
- Maximum Delivery Pressure of 10kg/cm2g (145 psig)
- Automatic Changeover of low pressure to high pressure Manifold With manual override - Contact pressure Gauges showing manifold Pressures
- Safety Valve at Delivery Pressure side

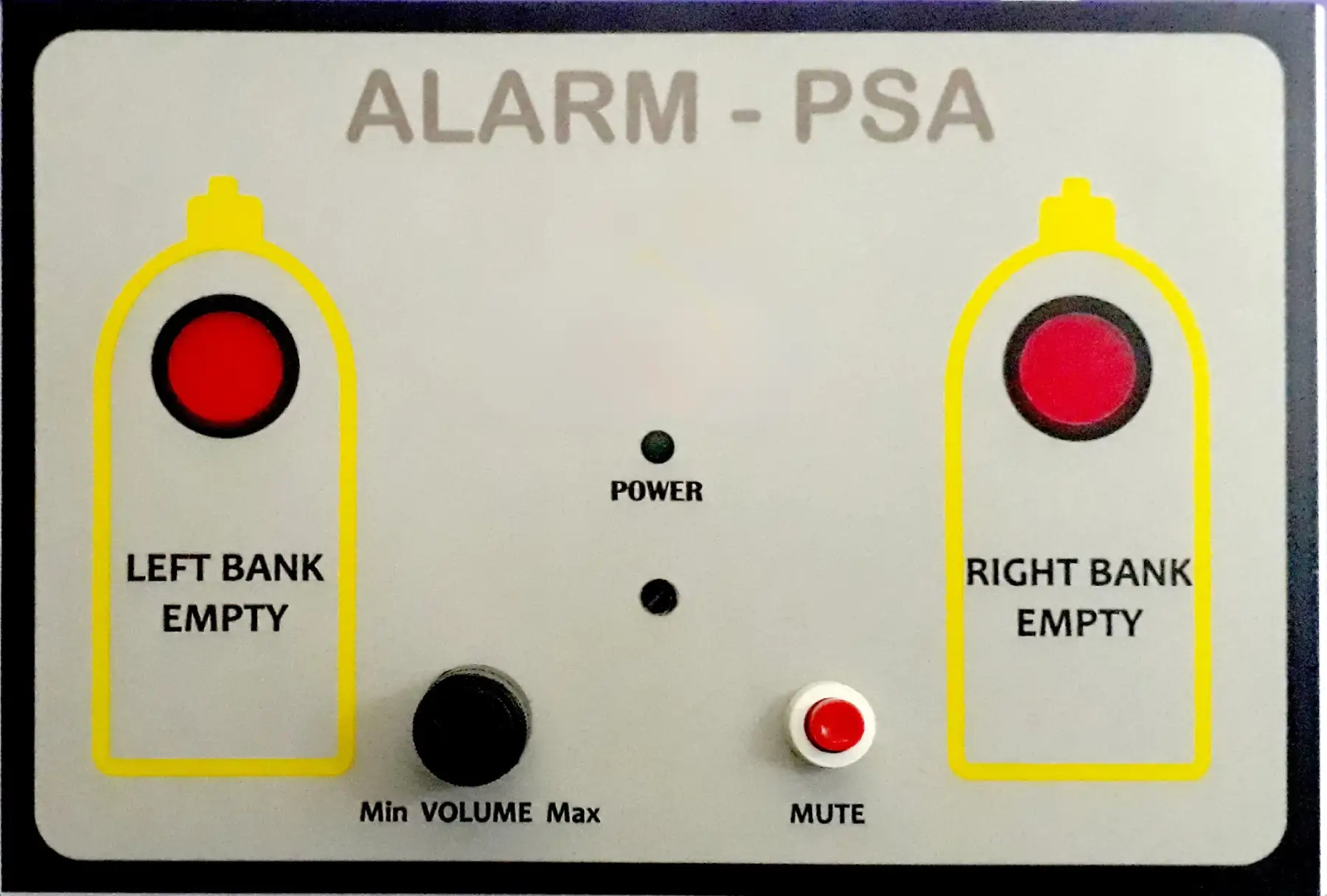

- Compression fitting Outlet Connection of the Panel suitable for 1/4"OD Tube with Remote Alarm system for Empty Manifold.
